MAGNET FERRITE ABSORBER MATERIAL

BASIC INFO

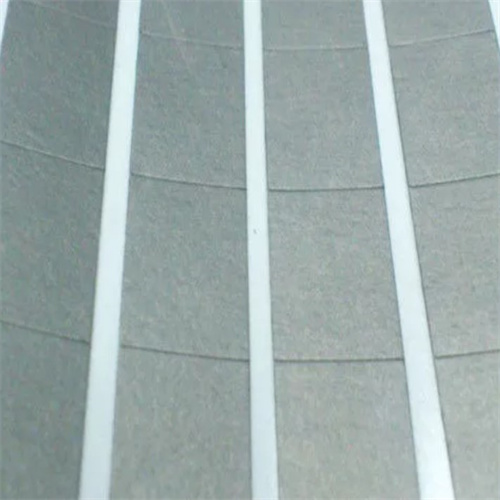

RFID / NFC ferrite EMI Shielding soft magnet absorber material  low cost

General permeability, low magnetic loss

High resistivity

Meet ROHS and halogen free

Flame retardant grade:UL94-V0

Size :210mm*290mm or 210mm*25meter

Main  composition

Magnetic particle + polymer matrix

Using temperature range

-25  ~ +100

Surface resistance

All of our products’ resistance value be equal or greater than 106Ω

Environmental performance

testing standards are in line with ROHS and halogen-free

Thickness

0.1mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm

OStandard size

Through the direction of thickness or according to your needs

Applications

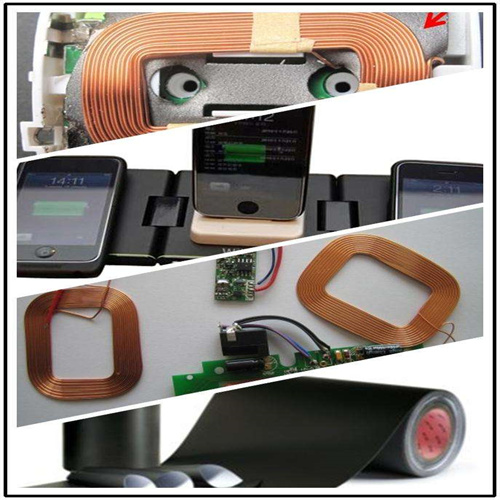

Used in RFID/NFC tags, reduce signal loss and increase communication distance.
