Pyramidal Microwave absorb foam

BASIC INFO

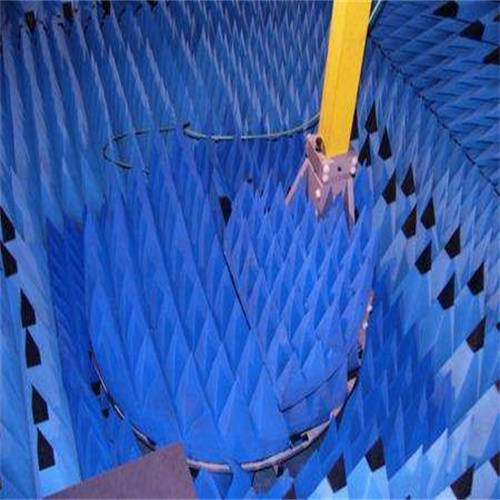

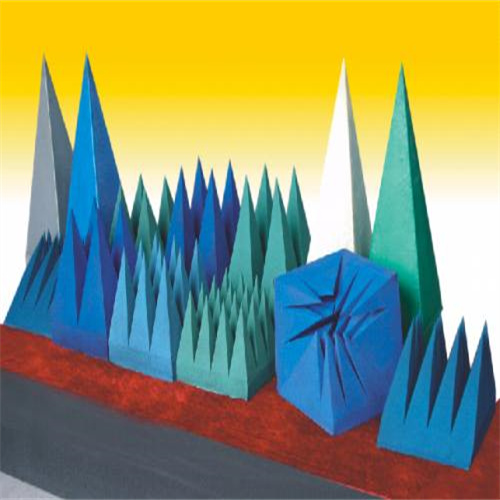

JA microwave pyramidal absorber aligned light blue quadrangular pyramid, possessing good fireproof performance which fulfills American NRL Report 8093.Service temperature: -50  ~ 70  . It is of good vertical incidence  oblique incidence  scattering and isolated decay performances at the wideband range. It is mainly used for subject material of anechoic chambers.



Model Number

Height
(mm)

Maximum Reflectivity at normal incidence -dB
GHz

Base Dimension

(mm)

15

10

6

3

1.5

0.5

0.3

0.2

JA-30

30

30

30













500  500

JA-45

45

40

35

30











500  500

JA-70

70

45

40

30











500  500

JA-100

100

45

40

35

30









500  500

JA-150

150

50

45

40

35









500  500

JA-200

200

50

50

45

40

30







500  500

JA-300

300

50

50

50

40

35







500  500

JA-400

400

50

50

50

45

40







500  500

JA-500

500

50

50

50

45

40

30

25



500  500

JA-600

600

50

50

50

45

40

35

30

20

600  600

JA-700

700

50

50

50

50

40

35

30

20

500  500

JA-900

900

50

50

50

50

45

35

30

20

600  600

JA-1000

1000

50

50

50 &a
